A2WS058 Aluminum Gas Welding Flux Powder

A2WS058 Aluminum Gas Welding Flux Powder

FOB Price:

US 5-8 / Kilogram

Min.Order Quantity:

10 Kilogram/Kilograms

Supply Ability:

10000 Kilogram/Kilograms per Week

Port:

China main port

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

T/T,Western Union,MoneyGram

Brand:

TiBright

Products Model:

FB501S-S

Products Details
Company Profile

Quick Details

Brand Name: TiBright

Model Number: FB501S-S

Place of Origin: Shandong, China (Mainland)

Packaging & Delivery

Packaging Details: 500 g/can, 500 g/bag, 20 kg/box Customized Package is available.
Delivery Detail: Shipped in 20 days after payment

Specifications

A2WS058 Aluminum Gas Welding Flux Powder

Product Description

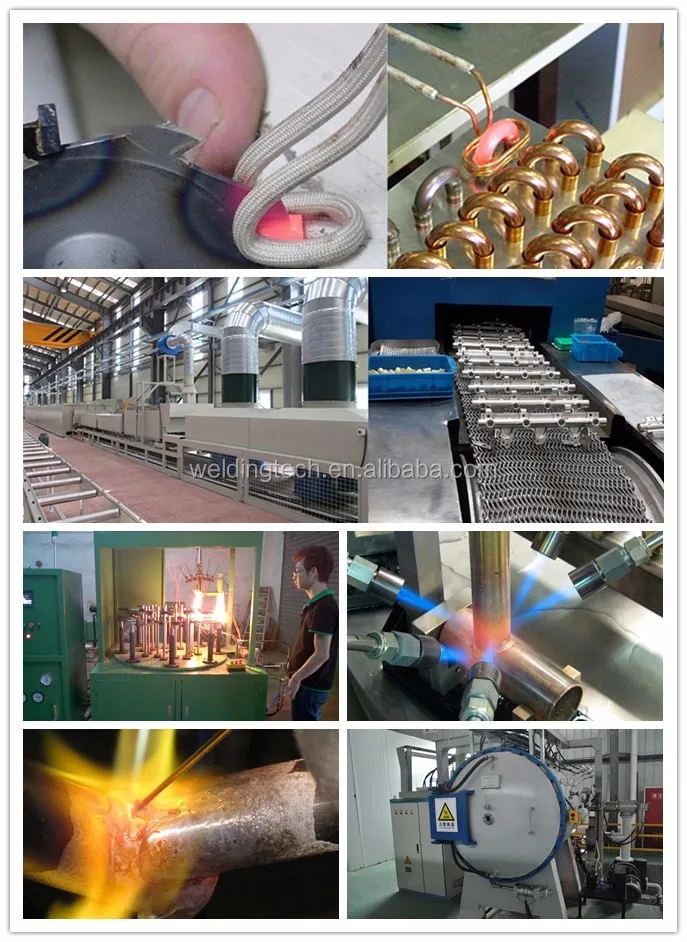

Product Usage	Aluminum brazing flux powder/paste can work together with aluminum or zinc based brazing filler metals on aluminum, aluminum alloy, copper alloy at the temperature range of 450-600°C in frame brazing, induction brazing, electrical resistance welding, furnace brazing, and so on.

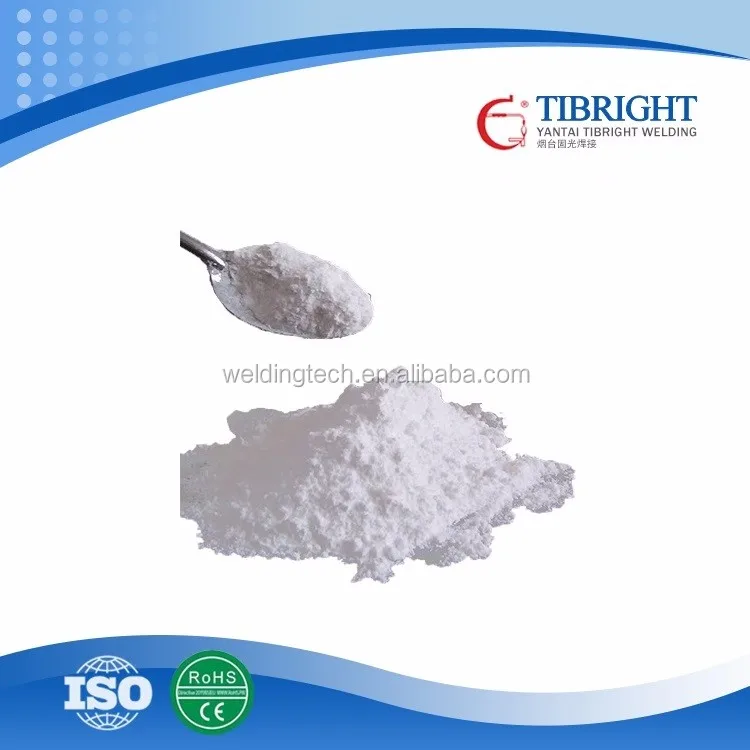

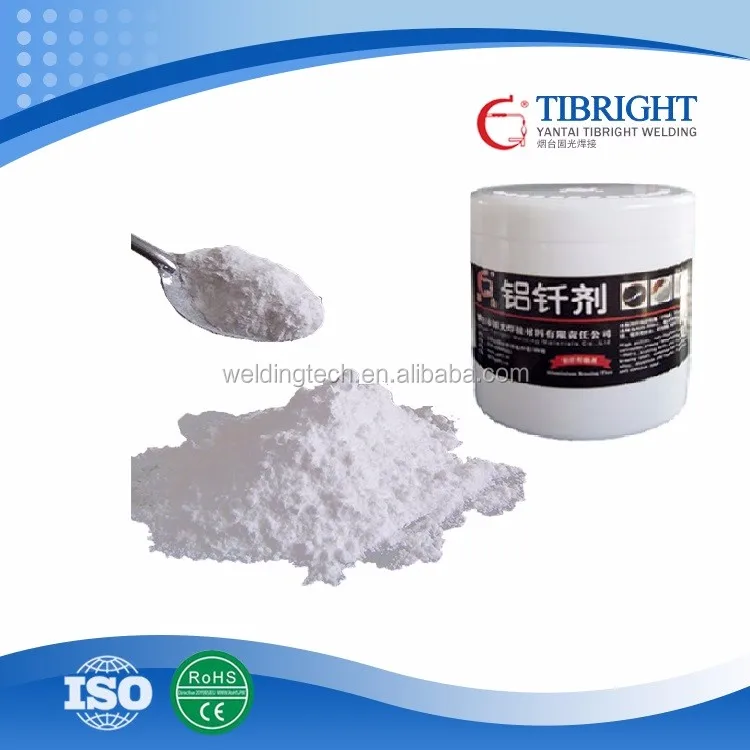

Physical Description	White powder/paste, granularity ≤ 150um.
Standard	JB/T6045-2015 Fluxes for Brazing, Shao Sun
Storage	Keep it in dry and cool place. Protect against damp, inedible.

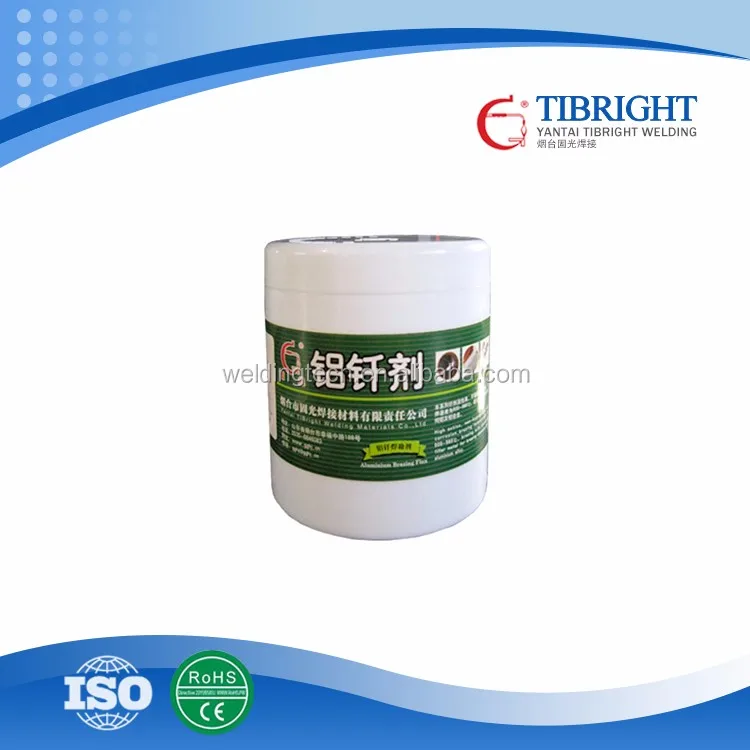

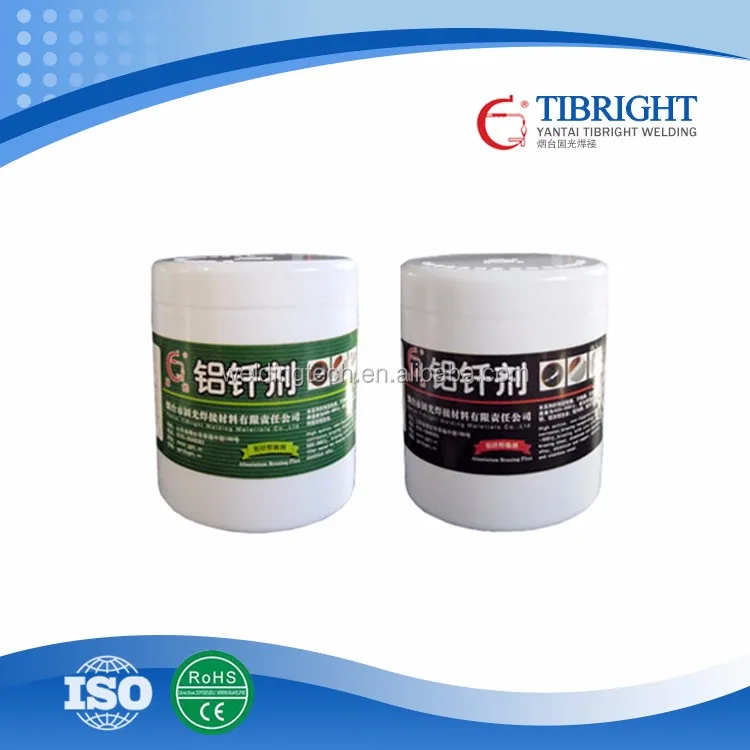

Package	a) 226.8g (8 Oz)/Plastic Can, 80 Cans/ Carton b) 454 g (16 Oz)/Plastic Can, 40 Cans / Carton c) 500 g / Plastic Can, 40 Cans / Carton d) 500 g / Plastic Bag, 60 Bags / Drum e) Customized Package is available.

Code	Activity range(°C)	Description
FB201S-11	450-660	Good fluidity,strong ability in removing oxidation film.Can be mixed with water to become paste,with good viscosity. Water soluble, no residual left. Recommend for repairement market.
FB201S-21	500-600	Good fluidity,strong ability in removing oxidation film.Can be mixed with water to become paste,with good viscosity. Water soluble, no residual left. Recommend for radiator brazing.
FB205S	450-600	Best activity for brazing with AlSi12, 4047 filler metal for the best brazing quality the requirements. Water soluble, no residule left. Highly recommend for radiator, bike producer.
FB206S/C	450-600	Great activity with AlSi12, 4047 filler metal alloy. water soluble, no residule left. Highly recommend for situation of high requirements in powder or paste form.
FB501S	560-600	Superior ability in removing oxidation film. Potassium floroaluminate flux system. Non-water-soluble. Thin residual film remain. Recommend for auto-radiator furnace brazing procedure.
FB502S	430-600	Superior ability in removing oxidation film. Low melting temperature, water washable. Expensive materials with cesium. Recommend for auto-radiator furnace brazing procedure.
FB503S/C	520-600	Great activity, low temperature, non-water soluble, thin residual film remain, in powder or paste form.

FB504S/C	560-600	Self flux and no filler metal is needed. Non-water soluble, thin residual film remain, in powder or paste form.

Contact Information

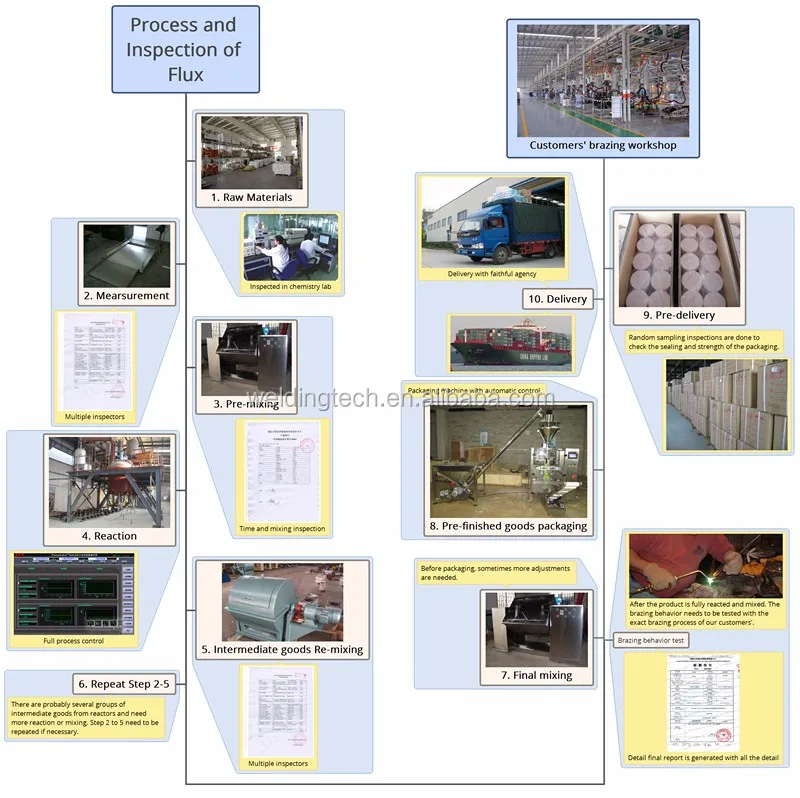

Process Flux

Application

The aluminum brazing flux has two main types: water soluble, and non-corrosive.

The water soluble aluminum flux has the contains that can absorb water from the air. It can mix with water to make paste, however, once mixed with water, the contains in the flux can get hydrolyzed and start loosing function. So the active life of this kind of aluminum flux after mixed with water is less than 4 hours. Our customers regulated the procedure that the flux must be used up after two hours after mixing with water. The life of the flux after expose to moist air is also limited.

Because of the solubility this kind of aluminum flux leaves no residual after being rinsed with water after brazing. However, the solution of this kind of flux is highly corrosive to metal materials thus the brazing parts need to rinsed thoroughly.

Another type is called non-corrosive aluminum flux. The most popular flux component is potassium floroaluminate (FB501). TiBright developed a new similar one with lower temeprature FB503. Also, FB502 has the main component of potassium-cesium floroaluminate. This one has low melting temperature (430C), and water soluble. It is also the most expensive one.

There is also a third type flux, FB504, which was developed by TiBright. FB504 has materials which can react with aluminum and generate a active layer on the surface of aluminum. This surface can act as filler metal, which means there is no need for any more filler metal.

Buying Guides

Yantai TiBright Welding Materials Co. Ltd., founded in 2000, is a professional developer and international supplier of inclusive brazing materials, equipment, and consultant. TiBright has hundreds of products for different applications. Customized products are also available for specific purposes.

When choose from our product library, please check out our recommended product list, If you have any questions, please let us know, We will try our best to satisfy your inquiry. Sometimes we need our customers to try different samples to make the perfect decision. Generally, we need to know the following information to choose a right product for you.

1. Materials of your parenting parts (to-be-brazed parts).

2. Heating methods. (eg. flame, induction, vacuum furnace etc. )

3. Atmosphere of application. (eg. room air, protective inert gas, reductive gas, vacuum, etc.)

4. Dimensions of your parts. Photos or graphs are preferred. (Different dimensions require different procedures.)

5. Current solution. (eg. brazing materials, equipment, procedures, etc.)

6. The reasons of searching new solution. (eg. price, strength, applicability, etc.)

7. Industry of your application. (Help us refer to similar examples.)

Yantai TiBright Welding Materials Co., Ltd. was founded in 1996 to develop, manufacture and market a wide range of welding materials. Our company also focuses on technological support and troubleshooting for the plants of our customers. As an independent innovative corporation, Tibright has a solid and reliable research team which includes senior engineers and scientists. Meanwhile, the cooperation between Tibright and many institutes is bringing more brilliant researchers and experts into our company. The most important and attractive service that is uniquely provided by Tibright is our customizable product service. Our research teams design the right solution against the particular welding situation of every single customer based on their requirements to satisfy them as much as possible.

Under the unremitting efforts of Tibright's staff and the support of our customers, Tibright has achieved remarkable accomplishments. Dozens of series and over a hundred kinds of models have been successfully developed and launched. Tibright's products have been utilized in many industries including refrigeration industries, automobile industries, air conditioning industries, hardware tools, precision instruments, glasses frames, furniture and others.

Tibright Welding has obtained an unbeatable reputation with our high-quality products, elaborate services and credible attitude. Tibright thus possesses exclusive procurement status of many big companies. In these past years with the opening of Chinese market to the outside world, Tibright has been actively opening up international markets. Nowadays, Tibright's brand has been exported to Britain, Italy, the United States, France, Thailand, Singapore, Japan, Korea, India, the Middle East and Southeast Asia.

With the principle of mutual benefit and sustainable development, Tibright would like to communicate with our customers about technological reforming and help them improve their manufactures. We are looking forward to cooperating with you.
